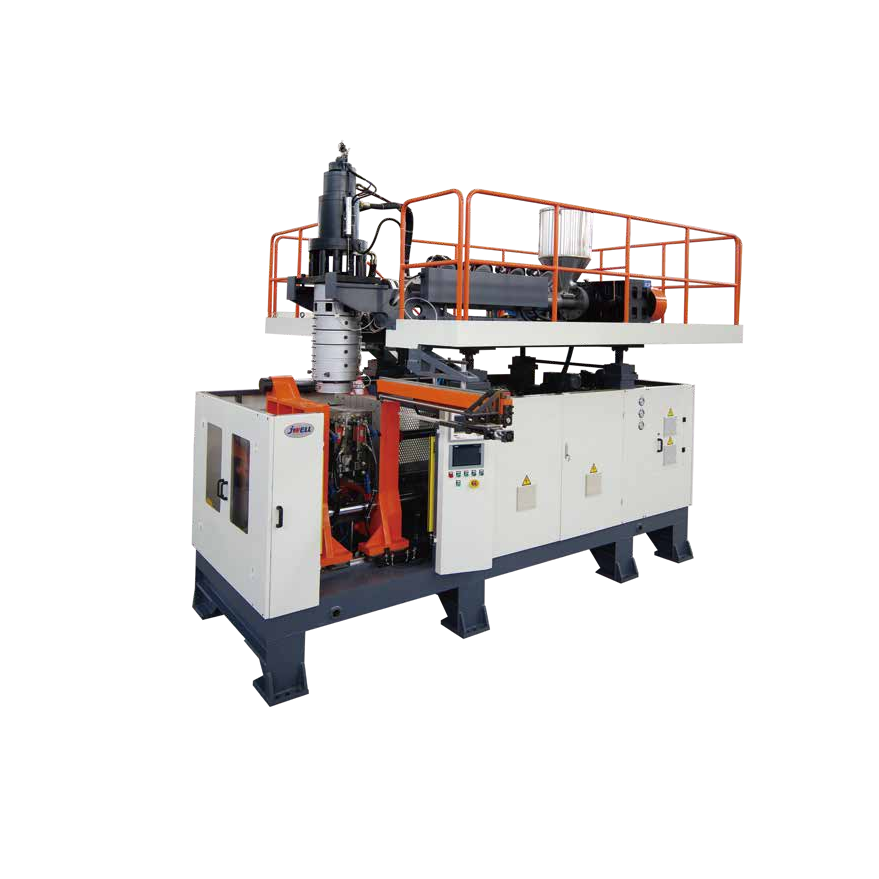

JWZ-BM30/50/100 Blow Molding Machine for Children Safety Chairs and Playground Facilities

Product Overview

The JWZ-BM30/50/100 Blow Molding Machine is a high-performance extrusion blow molding solution designed for the production of large hollow plastic products. It is widely used for manufacturing children's safety chairs, desk boards, playground facilities, automotive fluid containers, cooling water tanks, lubrication oil bottles, and various industrial hollow products.

Engineered with advanced extrusion technology and an accumulating die head system, this machine delivers stable output, excellent molding quality, and high production efficiency. The integrated post-cooling system significantly reduces forming time while improving product dimensional stability and surface quality.

Advanced Blow Molding Technology

The JWZ-BM30/50/100 Blow Molding Machine adopts a high-output plasticizing system that ensures uniform melt distribution and consistent product performance. The accumulating die head design allows the machine to process large-volume products with excellent wall thickness control and material utilization.

Using advanced three-dimensional die head design software, each die head is optimized according to specific product requirements. This guarantees superior melt flow balance and stable production performance across different product sizes and materials.

Key Features and Advantages

High Output Extrusion System

The machine is equipped with a highly efficient extrusion unit that provides stable plasticizing capacity and continuous production performance. The optimized screw design improves melt homogeneity and production efficiency.

Accumulating Die Head Design

The advanced accumulating die head technology ensures precise material accumulation before blowing, making it ideal for large hollow products with complex shapes and strict quality requirements.

Post-Cooling System

An optional post-cooling device shortens the molding cycle and improves overall production efficiency. It also enhances product strength, dimensional accuracy, and surface finish.

Flexible Configuration

To meet different production demands, the machine can be customized with various platen sizes, mold dimensions, and hydraulic systems. This flexibility enables manufacturers to produce a wide range of products using a single platform.

Automation Integration

Optional downstream automation equipment can be integrated, including:

• Automatic deflashing systems

• Product conveying systems

• Automated packaging units

• Product ejection devices

• Core-pulling mechanisms

These options help reduce labor costs and improve manufacturing efficiency.

Hydraulic Servo Control System

The optional hydraulic servo system provides precise motion control, lower energy consumption, reduced noise levels, and improved machine responsiveness.

Typical Applications

The JWZ-BM30/50/100 Blow Molding Machine is suitable for manufacturing a variety of hollow plastic products, including:

Children's Products

• Children's safety chairs

• Study desk boards

• Educational furniture

• Playground equipment

• Recreational facilities

Automotive Fluid Containers

• Gear oil bottles

• Lubrication oil bottles

• Coolant reservoirs

• Water tanks

• Automotive chemical containers

Industrial Hollow Products

• Large storage containers

• Technical plastic components

• Functional hollow structures

• Customized industrial products

The machine supports production capacities ranging from 30L to 100L, providing excellent flexibility for diverse manufacturing requirements.

Reliable Production Performance

The machine is designed for continuous industrial operation and delivers stable production output with excellent repeatability. Its robust clamping system ensures reliable mold closing force, while the precision hydraulic control system maintains consistent molding quality throughout long production cycles.

The optional JW-DB single-station hydraulic screen changer can be selected according to different material processing requirements, improving filtration efficiency and enhancing final product quality.

Technical Specifications

JWZ-BM30

• Maximum Product Volume: 30L

• Output Capacity: 600 pcs/h

• Screw Diameter: 80mm

• Plasticizing Capacity: 120kg/h

• Driving Motor: 37kW

• Clamping Force: 280kN

JWZ-BM50

• Maximum Product Volume: 50L

• Output Capacity: 450 pcs/h

• Screw Diameter: 90mm

• Plasticizing Capacity: 180kg/h

• Driving Motor: 45kW

• Clamping Force: 400kN

JWZ-BM100

• Maximum Product Volume: 100L

• Output Capacity: 360 pcs/h

• Screw Diameter: 100mm

• Plasticizing Capacity: 190kg/h

• Driving Motor: 55kW

• Clamping Force: 600kN

Why Choose JWZ-BM30/50/100 Blow Molding Machine

The JWZ-BM30/50/100 Blow Molding Machine combines advanced extrusion technology, flexible customization, and intelligent automation capabilities to meet modern manufacturing requirements. Whether producing children's furniture, playground facilities, automotive containers, or customized hollow products, this machine provides reliable performance, high productivity, and outstanding product quality.

With its robust construction, efficient plasticizing system, and optional automation solutions, the JWZ-BM30/50/100 is an ideal choice for manufacturers seeking to improve production efficiency and expand their blow molding capabilities.
