Vertical Milling Center Castings

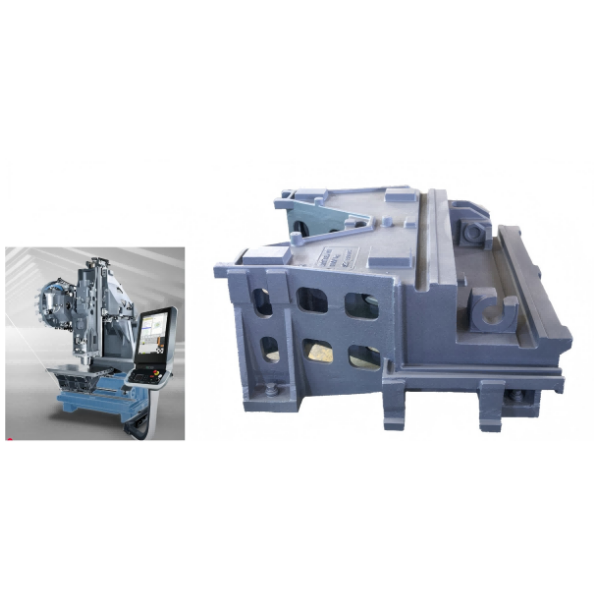

The Vertical Milling Center Casting is a precision-engineered machine tool casting designed for vertical milling centers and other heavy-duty metal cutting machine tools. As a critical structural component, the bed provides a stable foundation for the machine, helping support the working system and maintain rigidity during machining operations.

Manufactured from EN-GJL 300 (HT300/FC300/GG30) cast iron, this vertical milling center bed combines high structural strength, excellent vibration damping, and reliable dimensional stability. It is suitable for demanding machining applications where machine rigidity and long-term operating stability are essential.

Key Specifications

High-Strength Cast Iron for Machine Tool Applications

The bed is manufactured using EN-GJL 300 cast iron, also commonly identified as HT300, FC300, or GG30. This grade of gray cast iron is well suited to machine tool structures because of its combination of mechanical strength, rigidity, machinability, and vibration absorption.

For vertical milling centers, these properties are particularly important. During high-load cutting operations, the machine bed must provide a solid and stable support structure while helping minimize the transmission of machining vibration. A properly engineered cast iron bed can contribute to improved machining stability and consistent equipment performance.

Designed for Vertical Milling Centers

As the main supporting casting of a vertical milling center, the bed is designed to accommodate the machine's structural and operational requirements. Its substantial 1,324 kg weight provides a robust foundation for metal cutting operations.

The casting can be used in vertical milling center applications where structural rigidity, vibration damping, and long-term reliability are key considerations. It is also suitable for manufacturers and machine tool builders looking for dependable cast components for CNC metal cutting equipment.

Proven Production Experience

Production of this vertical milling center casting started in 2015, providing years of manufacturing experience in this product category. With a cumulative supply quantity of 900+ pieces, the casting has demonstrated established production capability for vertical milling center applications.

Consistent manufacturing processes are important for large machine tool castings. From casting to subsequent machining and inspection, maintaining dimensional accuracy and structural integrity helps ensure that the finished bed meets the requirements of the intended machine tool.

Applications

The Vertical Milling Center Casting can be applied to various metal cutting machine tools, including:

• CNC vertical milling centers

• Vertical machining centers

• Heavy-duty milling equipment

• CNC metal cutting machines

• Industrial machining systems

Its cast iron construction makes it particularly suitable for machine tools requiring a rigid and vibration-resistant structural base.

Why Choose a Cast Iron Milling Machine Bed?

A high-quality machine tool bed plays an essential role in overall equipment performance. Using EN-GJL 300 cast iron provides several advantages:

Excellent Vibration Damping: Gray cast iron helps absorb machining vibration, supporting stable cutting conditions.

High Structural Rigidity: The robust casting structure provides a strong foundation for the machine's working components.

Good Dimensional Stability: Properly produced machine tool castings can maintain reliable geometry during long-term operation.

Suitable for Heavy-Duty Machining: The 1,324 kg bed is designed for applications requiring substantial structural support.

Established Supply Capability: With production beginning in 2015 and more than 900 pieces supplied, the product has proven manufacturing experience.

Reliable Vertical Milling Center Casting Solution

Choosing the right casting is essential when building or upgrading a vertical milling center. The bed must withstand machining loads while providing the rigidity and vibration control required for accurate metal cutting.

This EN-GJL 300 Vertical Milling Center Casting combines a robust cast iron structure with established production experience, making it a reliable choice for metal cutting machine tool manufacturers, CNC equipment builders, and industrial machining applications.
