TZST SIB-M5L Battery Delivers Wide -20°C To 65°C Range

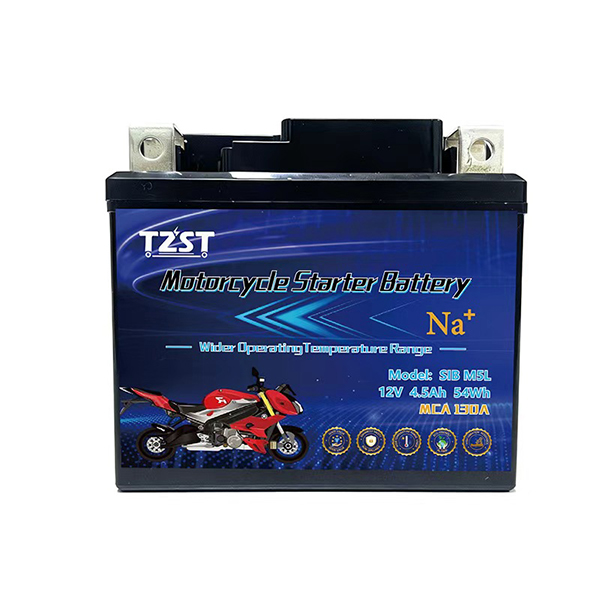

Understanding the SIB-M5L Sodium-Ion Starter Battery

Motorcycle owners and fleet operators across diverse climates face a recurring challenge: conventional lead-acid starter batteries struggle to perform reliably once temperatures drop or rise beyond moderate ranges. The SIB-M5L Sodium-Ion Starter Battery, developed by TZST New Energy Tech Co., Ltd. under the TZST brand, addresses this issue directly through an operating temperature range of -20°C to 65°C, a specification that positions the product as a versatile replacement for conventional YTX5-size lead-acid batteries used in mainstream underbone motorcycles and medium-to-large scooters.

Why Operating Temperature Range Matters

Operating temperature range refers to the span of ambient conditions within which a battery can function without significant degradation in performance or safety. For riders in regions experiencing cold mornings, hot afternoons, or seasonal extremes, this specification determines whether a vehicle starts reliably or stalls. Conventional lead-acid batteries are known to lose cranking power in low temperatures and can suffer from maintenance concerns such as acid leakage over time. The SIB-M5L’s -20°C to 65°C rating allows it to serve both cold-climate and high-heat markets without requiring separate product variants, simplifying inventory and replacement decisions for distributors and end users alike.

Core Technical Specifications

The SIB-M5L is built around sodium-ion chemistry, which TZST has developed specifically for starter battery applications. Its documented key features include:

• Cell Capacity: 4.5 Ah
• Starting Current: 130A
• Battery Energy: 54 Wh
• Weight: 720 g
• Operating Voltage Range: 6.0–15.6 V
• Dimensions: 113 × 69 × 104 mm
• Operating Temperature Range: -20–65 °C
• Cycle Life: over 2,000 cycles
• Maximum Continuous Charging Current: 13.5A

These figures reflect a design intended to balance capacity, weight, and durability. At 720 grams, the SIB-M5L offers a lightweight alternative to traditional lead-acid units, while the 130A starting current ensures sufficient cranking power for mainstream commuter motorcycles and medium-to-large scooters. The cycle life rating of over 2,000 cycles indicates that the battery is engineered for extended service life relative to typical lead-acid replacement cycles, which tend to require more frequent replacement due to capacity fade and maintenance demands.

Addressing Real-World Pain Points

Riders and fleet managers who currently rely on YTX5-size lead-acid batteries often encounter several recurring issues: the risk of acid leakage, the need for periodic maintenance, and diminished starting reliability once temperatures fall below typical operating thresholds. The SIB-M5L is positioned as a direct response to these concerns. Its maintenance-free operation eliminates the risk of lead-acid leakage entirely, since the product uses sodium-ion cells rather than lead-acid chemistry. This also removes the maintenance routines historically associated with lead-acid batteries, such as periodic fluid checks.

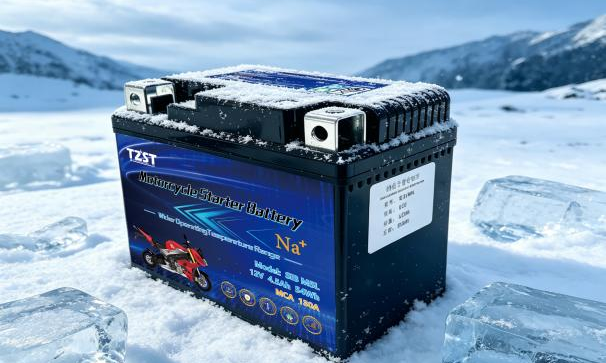

The wide operating temperature range further means that riders do not need to worry about swapping batteries seasonally or sourcing cold-weather-specific products. Whether temperatures dip to -20°C during winter commutes or climb toward 65°C in hot climates, the SIB-M5L is designed to remain within its specified operating envelope.

Fit Within TZST’s Broader Product Ecosystem

The SIB-M5L is one entry within TZST’s Motorcycle Sodium-Ion Starter Batteries lineup, which also includes the SIB-YTX4 (designed for small-displacement scooters) and the SIB-YTX9 (designed for mid-to-large displacement, retro-style, and cruiser motorcycles). Across this lineup, TZST applies a consistent sodium-ion technology platform that supports wide-temperature performance from -40°C to 65°C at the chemistry level, with individual products specifying their own tested operating ranges based on form factor and application. The SIB-M5L’s -20°C to 65°C range reflects its positioning as a mainstream, general-purpose replacement rather than an extreme cold-start specialist model.

This breadth of product offerings is supported by TZST’s library of 100+ motorcycle-specific molds, which the company states enables small-batch flexible production and rapid prototyping as fast as 15 days. For distributors or OEM partners evaluating battery options across multiple motorcycle platforms, this manufacturing flexibility can be a relevant consideration alongside the SIB-M5L’s own specifications.

Technology Foundations Behind the Product

TZST describes its sodium-ion starter battery solutions as self-developed, supported by 17 sodium battery patents and a technology platform built around sodium-ion chemistry for starter battery use. The company notes that its batteries incorporate a built-in BMS (Battery Management System) designed to prevent overcharge and over-discharge conditions, which contributes to operational safety during the charge-discharge cycles that occur throughout the battery’s service life.

TZST has also completed 98 safety and extreme-condition tests along with UN 38.3 testing, a standard testing protocol relevant to the transport of lithium and sodium battery products. Additional documentation referenced by the company includes SDS/MSDS materials, CE documentation where applicable, and a Dangerous Goods Transport Assessment Report. These documents are generally relevant to buyers and logistics partners who require compliance verification before importing or distributing battery products, particularly across the international markets TZST serves, including Africa, Southeast Asia, and Latin America via export through Tianjin Port.

Industry Context and Standards Participation

TZST has participated in the formulation of the "Technical Conditions for Starting Lithium-ion Batteries" standard and the "Technical Conditions for Starting Sodium-ion Batteries" standard, serving as a drafting unit for both. The company is also a member of the MIIT Lithium-ion Battery Standards Working Group and the China Battery Industry Association, along with holding council membership in the China Automotive Maintenance and Repair Trade Association. This standards-related engagement reflects ongoing involvement in the broader conversation around sodium-ion battery specifications within the industry, including the type of temperature and performance benchmarks that define products like the SIB-M5L.

Considerations for Buyers

For riders, distributors, or fleet operators evaluating a replacement for YTX5-size lead-acid batteries, the SIB-M5L’s documented specifications offer a basis for direct comparison: 4.5 Ah capacity, 130A starting current, 720 g weight, and a -20°C to 65°C operating range. These figures, combined with the maintenance-free sodium-ion design, position the SIB-M5L as a candidate worth evaluating for mainstream commuter motorcycles and medium-to-large scooters operating across variable climate conditions. As with any battery replacement decision, buyers are encouraged to confirm compatibility with their specific vehicle’s battery compartment dimensions and electrical requirements prior to purchase.

TZST New Energy Tech Co., Ltd., headquartered in Tianjin, China, continues to develop its sodium-ion starter battery portfolio alongside accessory and enclosure products designed to support motorcycle, passenger vehicle, and energy storage applications across its served markets.
