Stainless Steel & Stainless Steel Clad Plate
Metallurgically bonded double-stainless clad plate, matching different stainless grades to balance ultra corrosion resistance, high strength & raw material cost savings.

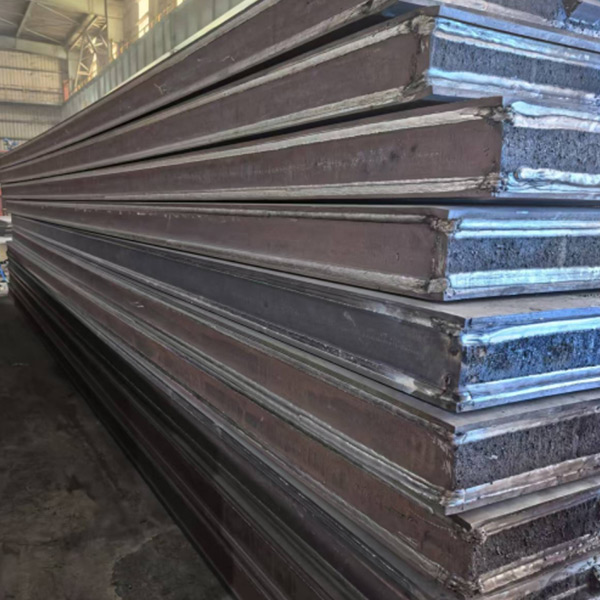

Stainless Steel Clad Stainless Steel Bimetallic Composite Plate
Metallurgically bonded double-stainless clad plate, matching different stainless grades to balance ultra corrosion resistance, high strength & raw material cost savings. Made by explosion welding & hot roll bonding, custom single/double-side cladding for chemical, pharmaceutical, seawater desalination & high-corrosion pressure vessels.
·Base Substrate: 201，304… stainless steel
·Cladding Layer: 2205，904L,254SMO，310S…stainless steel
Custom thickness ratio of substrate & cladding layer is available per drawing requirements.
Main Stainless Steel Clad Stainless Steel Plates
| Single-sided Clad | Double-sided Clad | ||||||
| 304+201 | 304+201+304 | ||||||
| 304L+201 | 304L+201+304L | ||||||
| 316L+304 | 316L+304+316L | ||||||
| 2205+304 | 2205+304+2205 | ||||||
| 904L+304 | 904L+304+904L | ||||||
| 904L+2205 | 904L+2205+904L | ||||||
| … | … |
Product Specifications：
| Cold-rolled | Hot-rolled | Heavy plate | ||||||
| Thickness (mm) | 0.5-3.0 | 3.0-14.0 | 6.0-120.0 | |||||
| Width(mm) | 1030/1250/1530 | 1030/1250/1530 | 1000-3000 | |||||
| Cladding Ratio | 10%+80%+10%/5%+90%+5% or customized | 1+4/1+5/1+7/1+9/1+11/10%+80%+10%/5%+90%+5% or customized | 5%-50% | |||||
| Standard | ASTM A264，EN 13445-2 ，JIS G3601 ，GB/T 8165 | |||||||
Production & Quality Control
·Production line：Hot rolling composite workshop, support bulk order & small trial order
·Complete strict inspection flow:
Ultrasonic Testing (UT) 100% full scanning for bonding integrity
Mechanical test: shear strength, bending, tensile performance
Chemical composition spectral analysis for both base & cladding stainless layers
Hardness inspection & metallographic interface observation
Corrosion resistance spot test for cladding layer
·Available certifications & documents: SGS, BV, TUV third-party test reports, full MTC material test certificates, ultrasonic inspection records.
·Packing: Waterproof plastic film + wooden pallet, sea-worthy export package to avoid rust during long ocean transportation
Main Industrial Applications
·Pharmaceutical & Food Processing Equipment：Hygienic reaction kettles, fermentation tanks, storage containers with dual corrosion & sanitary requirements.
·Seawater Desalination & Marine Engineering：Desalination heat exchangers, offshore platform liners, seawater circulation tanks resisting chloride pitting corrosion.
·High-Corrosion Petrochemical Industry：Hydrochloric acid, sulfuric acid storage tanks, high-pressure reactors, distillation towers under complex corrosive media.
·Waste Water & Flue Gas Treatment：Strong acid waste liquid treatment tanks, flue gas desulfurization equipment with high chloride content.
·High-Temperature Corrosion Equipment：High-temperature furnace liners, heat exchange equipment for chemical sintering process.
·Special Pressure Vessel：Critical pressure vessels requiring all-stainless corrosion resistance with controlled raw material budget.
