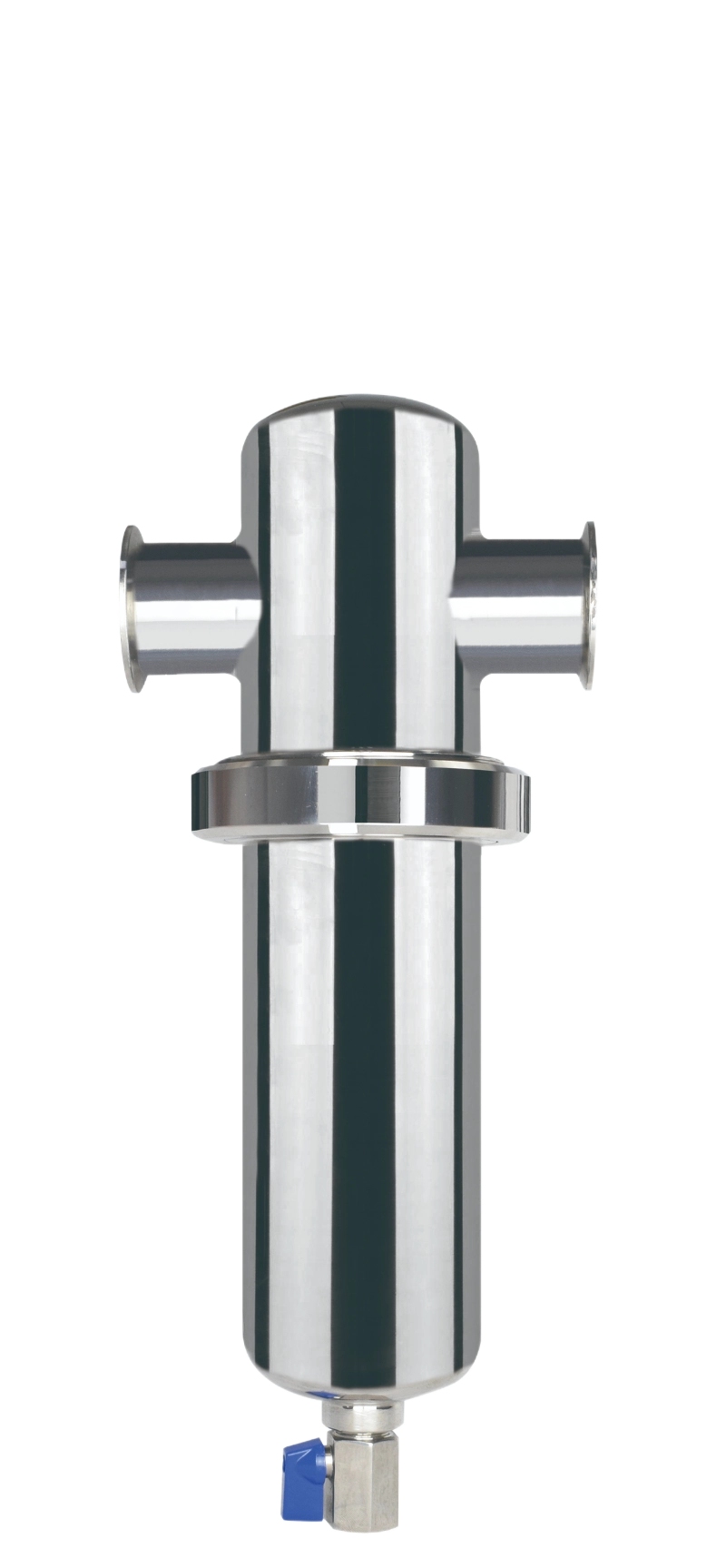

Selection of Threaded Stainless Steel Filter for Compressed Air System

The Selection of Threaded Stainless Steel Filter is designed for industrial compressed air systems that require high reliability, strict air purity, and long service life. Built with full stainless steel construction and precision filtration elements, it ensures stable performance in demanding environments such as food processing, pharmaceuticals, electronics, and precision manufacturing.

Product Overview

This threaded stainless steel filter operates at a working pressure of up to 1.0MPa and is engineered to deliver clean, dry, and contaminant-free compressed air. It effectively removes oil mist, liquid water, solid particles, and microorganisms, protecting downstream equipment and maintaining consistent production quality.

Custom flange connections are available upon request. Customers can consult with the sales team for tailored configuration options based on system requirements.

Filtration Accuracy Options

The filter is available in multiple filtration grades to meet different application needs:

Class C: 3 Micron (Pre-filter)
Class T: 1 Micron (After filter)
Class A: 0.01 Micron (Line filter)
Class F: 0.01 Micron (Fine filter)
Class H: 0.01 Micron (Activated carbon filter)

These options allow flexible system design, from primary separation to ultra-fine purification and odor removal.

Core Advantages

High-Precision Filtration Performance
Achieves filtration accuracy down to 0.01μm, effectively removing oil aerosols, moisture, dust, and microorganisms from compressed air. This ensures a stable and high-quality air supply for sensitive industrial applications.

Full Stainless Steel Construction (304/316L)
The housing and internal components are manufactured from high-grade stainless steel, offering excellent corrosion resistance and mechanical strength. This structure prevents rust contamination and is ideal for hygienic industries requiring strict cleanliness standards.

Low Pressure Drop and Energy Efficiency
An optimized internal flow path minimizes pressure loss during operation, reducing compressor load and lowering overall energy consumption. This contributes to improved system efficiency and reduced operating costs.

Quick Maintenance and Cost Efficiency
A modular design with a quick-opening cover allows fast filter element replacement in under one minute without tools. This significantly reduces downtime and maintenance labor costs.

Application-Driven Design

The Selection of Threaded Stainless Steel Filter is developed for industries with strict air quality requirements and continuous operation demands. Unlike traditional carbon steel filters, its all-stainless steel structure eliminates secondary contamination risks caused by rust or material degradation.

It provides reliable protection for high-value downstream equipment such as laser cutting heads, spraying systems, robotic automation equipment, and precision instruments. By maintaining consistent air purity, it helps ensure product quality stability and reduces equipment failure rates.

Industry Applications

This filter is widely used in:

Food and beverage production
Pharmaceutical manufacturing
Electronic and semiconductor industries
Chemical processing systems
Precision machinery and automation lines

Compliance and Quality Standards

The system is designed to meet ISO 8573-1 compressed air quality standards and is manufactured in compliance with CE and ISO certification requirements. This ensures safe operation, international compatibility, and consistent performance in global industrial environments.

Conclusion

The Selection of Threaded Stainless Steel Filter offers a reliable and efficient solution for high-demand compressed air purification. With its corrosion-resistant structure, ultra-fine filtration capability, and energy-saving design, it provides long-term protection for industrial systems while improving overall operational efficiency and product quality.
