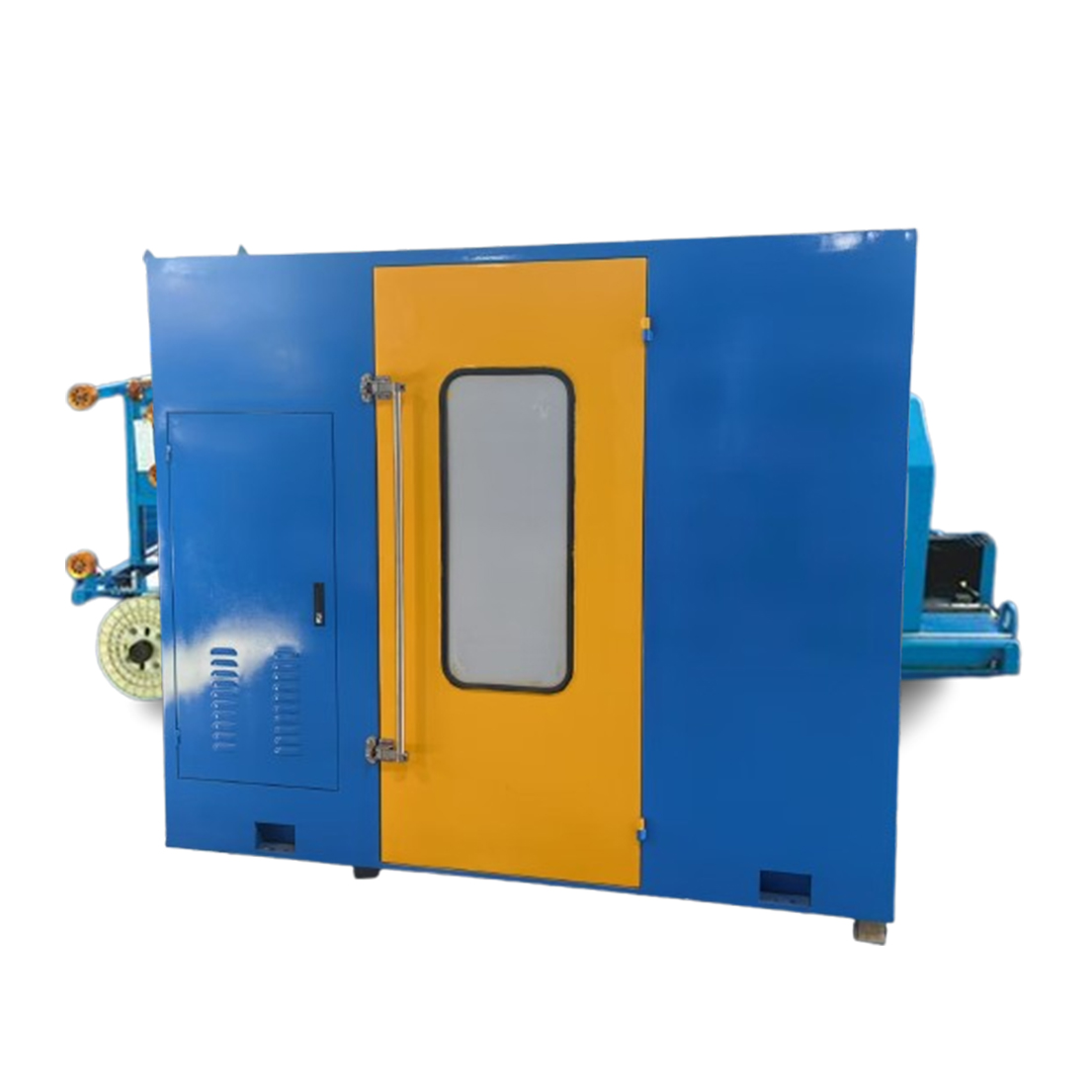

Horizontal or vertical untwisting and twisting machine

Usage: Suitable for unwinding and twisting-reducing of the insulation core wires of data cables such as CAT-5, CAT-5E, CAT-6, CAT-7, and CAT-8.

Usage: Suitable for unwinding and twisting-reducing of the insulation core
wires of data cables such as CAT-5, CAT-5E, CAT-6, CAT-7, and CAT-8.

Features: Pre-twist before twisting, significantly reducing the impact of the
core wire on the structure of the wire during twisting. The twisting machine and
the pre-twist machine operate in tandem.

Machine composition: Consists of 500 active torque-reducing wire drawing
machines + 500 twisted pair machines.

Model         JH500 JH650
Wire specification   MAX φ3.1mm MAX φ4mm
Pitch range 6-54.7mm 9-120mm
Rotate speed MAX 2500RPM MAX 2200RPM
Max wire speed MAX 120m/min MAX 100m/min
Pay-off tension Controlled by tension slider rod feedback
Take-up tension Magnetic powder clutch control
Change the twist distance Change the gear Change the gear
Take-up bobbin φ500mm φ650mm
Power 4KW 5.5KW
Stranding direction "S"or"Z" direction, Adjustable
Lifting system Hydraulic automatic lifting
Brake system Electromagnetic brake automatic brake when internal and external wire break
Automatic oil injection system           Using an electronic hydraulic oil injection system, the oil injection time can be adjusted properly. There is no need for manual addition of bearing grease.
