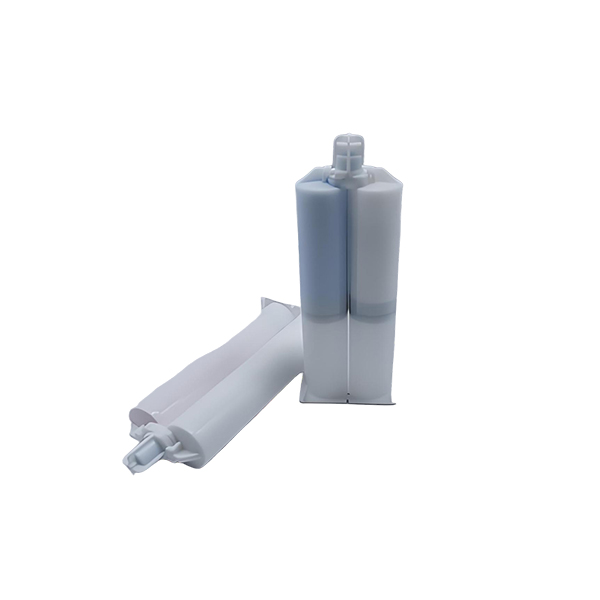

GF-AB02 Thermal Gel
ZS-GF-AB30 is a kind of appearance paste two-component molding high thermal conductivity silicone gel, can be heated curing, with the characteristics of the higher the temperature the faster the curing. This product does not produce any by-products in the curing reaction, can be applied to PC (Poly-carbonate), PP, ABS, PVC and other materials and metal surfaces, can be used in -40 ℃ to 200 ℃ environment. It can be used in the environment from -40℃ to 200℃. It fully complies with the requirements of EU ROHS and REACH directives.
Product characteristics：
ZS-GF-AB30 is a kind of appearance paste two-component molding high thermal
conductivity silicone gel, can be heated curing, with the characteristics of the
higher the temperature the faster the curing. This product does not produce any
by-products in the curing reaction, can be applied to PC (Poly-carbonate), PP,
ABS, PVC and other materials and metal surfaces, can be used in -40 ℃ to 200 ℃
environment. It can be used in the environment from -40℃ to 200℃. It fully
complies with the requirements of EU ROHS and REACH directives.
Typical applications：
·New Energy Vehicle
·Communication Equipment
·LED
·Computer, Cell Phone
·Drone
·For other applications, please consult our technical staff.
Product Parameters:
|
Test items |
Component A |
Component B |
Test Standard |
|
|
Before curing |
Appearance |
Light red paste |
White paste |
Q/GZJTHG 42-2022 |
|
Viscosity(cps) |
250,000-450,000 |
250,000-450,000 |
Q/GZJTHG 42-2022 |
|
|
Mixing ratio A:B (weight ratio) |
1∶1 |
Q/GZJTHG 42-2022 |
||
|
Operating time at 25°C (min) |
30-90 |
Q/GZJTHG 42-2022 |
||
|
Curing time at 25°C (h) |
2-6 |
Q/GZJTHG 42-2022 |
||
|
After curing |
Hardness(Shore 00) |
35-55 |
ASTM D2240 |
|
|
Thermal Conductivity(W/m*K) |
≥3.0 |
ASTM D5470 |
||
|
Dielectric strength（kV/mm） |
≥6 |
GB/T 1695 |
||
|
Volume resistivity （Ω·cm） |
≥1.0×10 12 |
GB/T 1692 |
||
|
Density（g/cm3） |
2.6 ±0.1 |
GB/T 13354 |
||
|
Flame Rating |
UL94V-0 |
UL94 |
||
The above performance data before curing are measured at 25℃, and the
mechanical and electrical performance data are measured after the specimens are
fully cured.The company will not be responsible for the data difference caused
by different test conditions or product improvement.
