Electrical Insulating Silicone Rubber
Characteristics: Good processability; good electrical insulation properties; good tracking & erosion resistance; good hydrophobicity and flame retardancy.

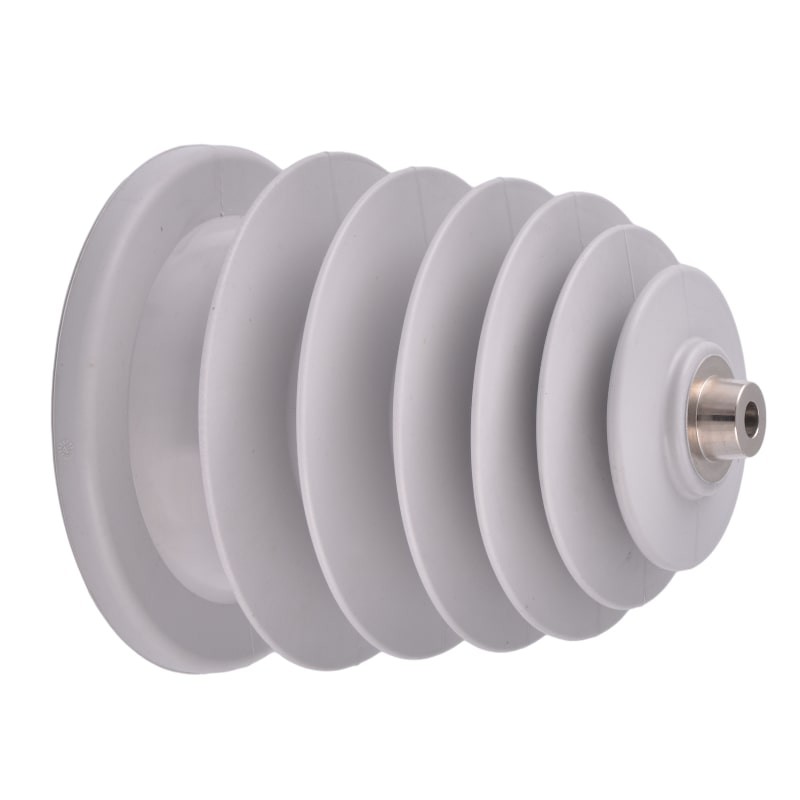

Main Applications: Various composite insulators, lightning arresters, insulators and high- & low-voltage electrical fittings for electrical lines of railways and urban light rails; type 1 is applicable to press molding, and Type 2 is applicable to injection molding.
Electrical Insulating Silicone Rubber
Characteristics: Good processability; good electrical insulation properties; good tracking & erosion resistance; good hydrophobicity and flame retardancy.
Main Applications: Various composite insulators, lightning arresters, insulators and high- & low-voltage electrical fittings for electrical lines of railways and urban light rails; type 1 is applicable to press molding, and Type 2 is applicable to injection molding.
Typical Characteristics
|
Model |
Appearance |
Hardness |
Tensile strength |
Elongation at break |
Tension set |
Tear strength |
Volume Resistivity |
Dielectric Strength |
Dielectric Loss |
|
MS-T-1/MS-T-1U |
Grey |
62±3 |
4.5 |
260 |
2.0 |
13.0 |
7×1014 |
22 |
3×10-2 |
|
MS-T-2/MS-T-2U |
Grey |
62±3 |
4.5 |
280 |
2.0 |
13.0 |
7×1014 |
22 |
3×10-2 |
|
MS-C-1/MS-C-1U |
Grey |
62±3 |
4.0 |
260 |
2.0 |
13.0 |
5×1014 |
20 |
6×10-2 |
|
MS-C-2/MS-C-2U |
Grey |
62±3 |
4.0 |
280 |
2.0 |
13.0 |
5×1014 |
20 |
6×10-2 |
|
MS-D-1/MS-D-1U |
Grey |
62±3 |
4.0 |
220 |
2.0 |
13.0 |
3×1014 |
18 |
7×10-2 |
|
MS-D-2/MS-D-2U |
Grey |
62±3 |
4.0 |
240 |
2.0 |
13.0 |
3×1014 |
18 |
7×10-2 |
|
MS-E-1/MS-E-1U |
Grey |
62±3 |
4.0 |
220 |
2.0 |
12.0 |
1×1014 |
18 |
7×10-2 |
|
MS-E-2/MS-E-2U |
Grey |
62±3 |
4.0 |
240 |
2.0 |
12.0 |
1×1014 |
18 |
7×10-2 |
Remarks:
-
The above data is for reference only, please contact MosenSil for detail.
-
Package: 20Kg per box.
-
Storage life: 12 months.
-
Curing agent and colorant can be added into silicone before shipping.
