Candy Metal Detector Supplier: SINBON’s Dual-Mode Systems

Understanding the Contamination Challenge in Candy Production

Manufacturers in the confectionery segment face a persistent operational risk: contamination of finished goods by metal foreign objects such as iron, aluminum, copper, and stainless steel. For candy producers, this risk is compounded by the diversity of product textures—from dry hard candies to moist, conductive fillings—which can interfere with conventional detection equipment and lead to false rejects or missed contaminants. Beyond the safety implications for consumers, undetected metal fragments can also damage downstream processing equipment, creating additional cost and downtime for manufacturers operating in the Food Industry.

Against this backdrop, SINBON has positioned itself as a specialized manufacturer of metal and needle detection solutions, drawing on over 20 years of design and manufacturing experience to address these industry-specific pain points across sectors including Food Industry, Pharmaceutical Industry, Chemical Raw Materials, and several others.

SINBON’s Tunnel Metal Detector (SBI Series): Core Technology

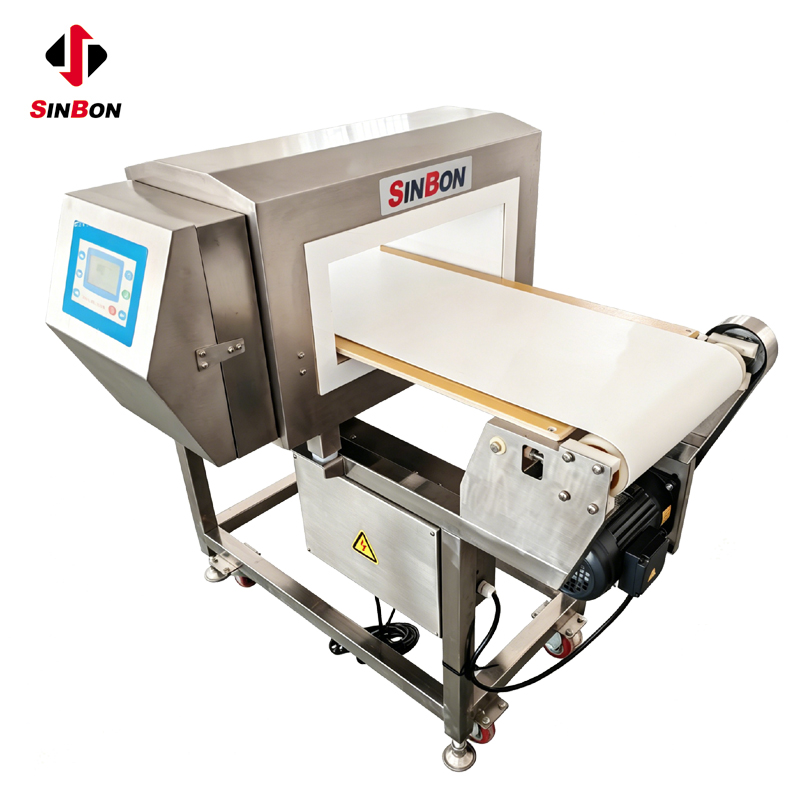

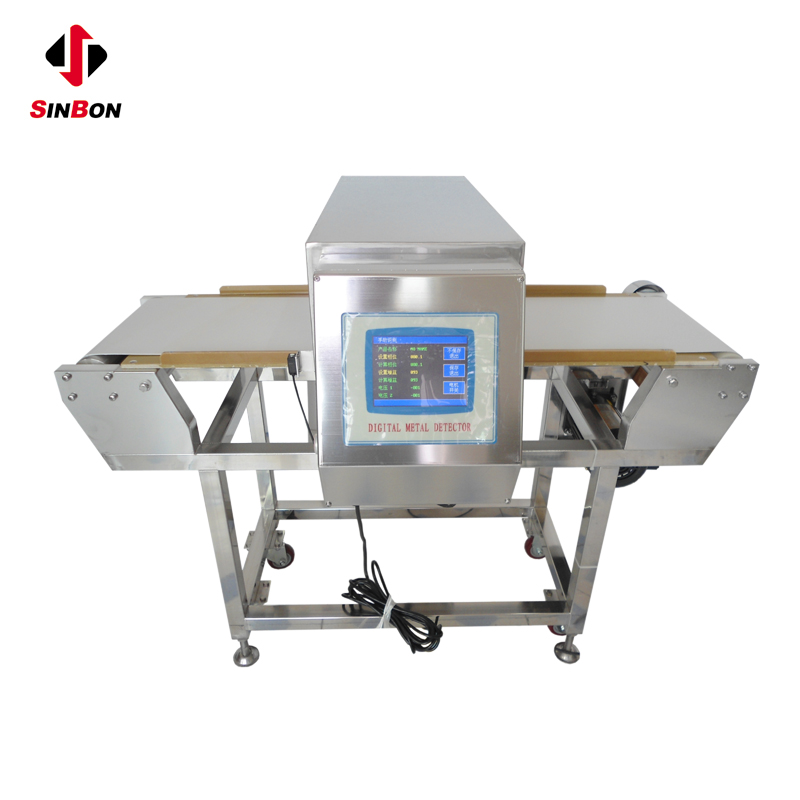

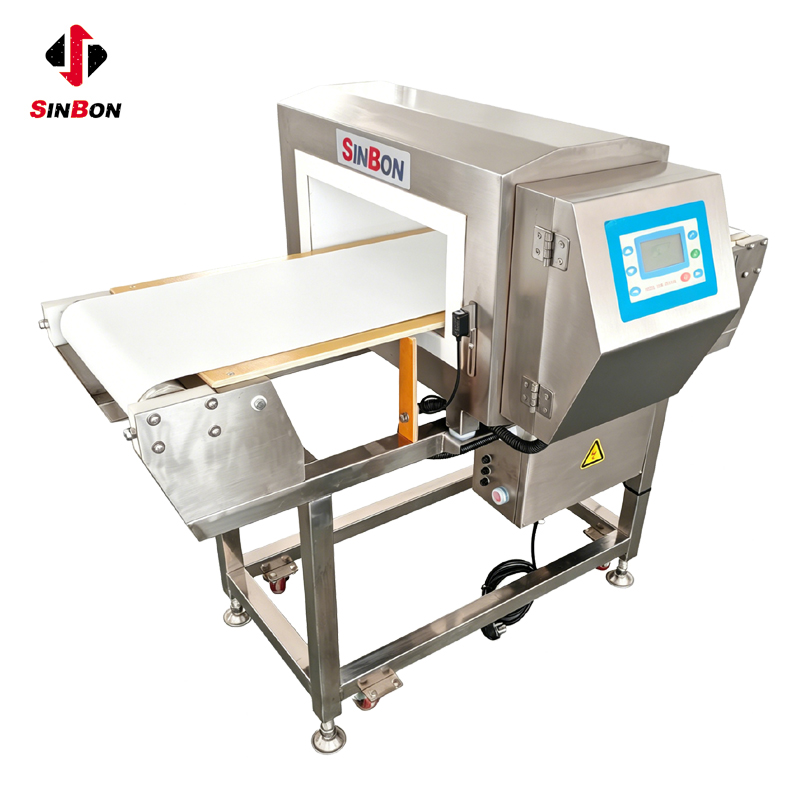

At the center of SINBON’s offering for candy and other food applications is the SINBON Tunnel Metal Detector (SBI Series), a versatile detection head engineered to identify all types of metal contaminants in both "dry" and "wet" products.

Balanced Coil Electromagnetic Induction Technology

The SBI Series relies on Balanced Coil Electromagnetic Induction Technology, which enables the probe to detect iron, aluminum, copper, and stainless steel contaminants passing through the tunnel. This detection method is paired with Digital Signal Process (DSP) Technology, which supports real-time signal analysis and interference filtering, contributing to the system’s overall stability.

Auto Product Learn and Dry/Wet Mode

One of the recurring challenges noted in the candy and broader food sector is "product effect"—a phenomenon in which moist or conductive products, such as sauces or certain fillings, are mistaken for metal contamination by traditional detectors, leading to false rejects. SINBON addresses this directly through two complementary technical methods:

• Auto Product Learn: The system automatically calibrates for different product effects without requiring manual intervention, which also means operators do not need specialized training to set up the machine effectively.
• "Dry/Wet" Mode: Optimized algorithms allow the same machine to detect both non-conductive (dry) and highly conductive (wet) products, saving manufacturers the cost of deploying separate detection lines for different product formats.

For candy producers running mixed production lines—dry hard candies alongside moist or filled varieties—this dual-mode capability allows a single detection unit to serve multiple product types without reconfiguration delays.

Technical Specifications and Sensitivity

SINBON’s SBI Series is available in multiple configurations to match different production line requirements. Representative models illustrate the range of sensitivity and detection height available:

• SBI-3010: Detection Height 70mm; Sensitivity: Fe Φ0.7mm, Non-Fe Φ0.8mm, SUS304 Φ1.2mm.
• SBI-4010: Detection Height 70mm; Sensitivity: Fe Φ0.7mm, Non-Fe Φ0.8mm, SUS304 Φ1.2mm.
• SBI-5040: Detection Height 370mm; Sensitivity: Fe Φ2.5mm, Non-Fe Φ3.0mm, SUS304 Φ4.5mm.
• SBI-8040: Detection Height 370mm; Sensitivity: Fe Φ2.5mm, Non-Fe Φ3.0mm, SUS304 Φ4.5mm.

These variable detection heights and sensitivity levels allow candy manufacturers to select a configuration suited to their specific packaging format and line throughput, with standard conveyor speeds of 25m/min. Rejection of flagged products is handled through Modular Rejectors, with options including air jet, air pusher, flapper, belt drop-down, and motor-driven roller mechanisms, giving production lines flexibility in how contaminated items are removed from the line.

Longevity and Maintenance-Free Design

A defining feature of SINBON’s positioning is equipment durability. The company states that its systems are designed for a working life exceeding 10 years, and for the SBI Series specifically, a design life exceeding 20 years, with documented cases of machines maintaining operational stability in the field for more than 10 years across various global industries. This longevity claim is paired with a "Maintenance Free" design philosophy, meaning that once installed, the systems are built to operate reliably without the frequent servicing that some detection equipment may require.

Practical daily operation is also supported by quick-assemble and disassemble conveyor designs, which are intended to make routine cleaning more convenient—an important consideration for candy production environments where sanitation and changeovers are frequent.

Compliance and Material Safety

For candy manufacturers operating under strict food safety frameworks, material compliance is a critical purchasing consideration. SINBON’s tunnel detection systems are built with a full Stainless Steel 304 structure, which meets HACCP requirements. This construction standard reflects the broader industry certification noted by SINBON, where equipment built for food contact applications is designed around SS304 material, while pharmaceutical-grade contact parts across the company’s product range meet 316 Stainless Steel standards.

Service and Operational Support

Beyond the hardware itself, SINBON frames its offering as combining Hardware Equipment with Integrated Control Systems. The SBI Series and related tunnel detectors feature multi-function operation interfaces, available as Color Touchscreen or LCD displays, supporting multiple different product parameter presets that can be recalled and edited easily—useful for candy lines that regularly switch between product formulas or packaging types.

To support international operations, the operating system is available in multiple languages, including Chinese, English, Spanish, Portuguese, Polish, and Czech, addressing the needs of manufacturers with multilingual production staff. A password protection function is also built into the system to prevent unauthorized parameter modification, adding a layer of operational security for quality control teams.

Conclusion

For candy manufacturers evaluating a metal detector supplier, the key considerations typically include detection sensitivity across dry and wet product formats, long-term equipment reliability, compliance with food safety construction standards, and ease of daily operation. SINBON’s Tunnel Metal Detector (SBI Series) addresses these considerations through its Balanced Coil Electromagnetic Induction Technology, Auto Product Learn and Dry/Wet Mode capabilities, HACCP-compliant SS304 construction, and a maintenance-free design supported by over 20 years of design and manufacturing experience in detection technology. These combined characteristics position SINBON as a relevant option for candy producers seeking a detection solution capable of handling varied product textures within a single, durable system.
