Best Sell Wall Mount Household LFP Battery
Unique Design
New wall mount design
LED Display
SOC,Battery Status

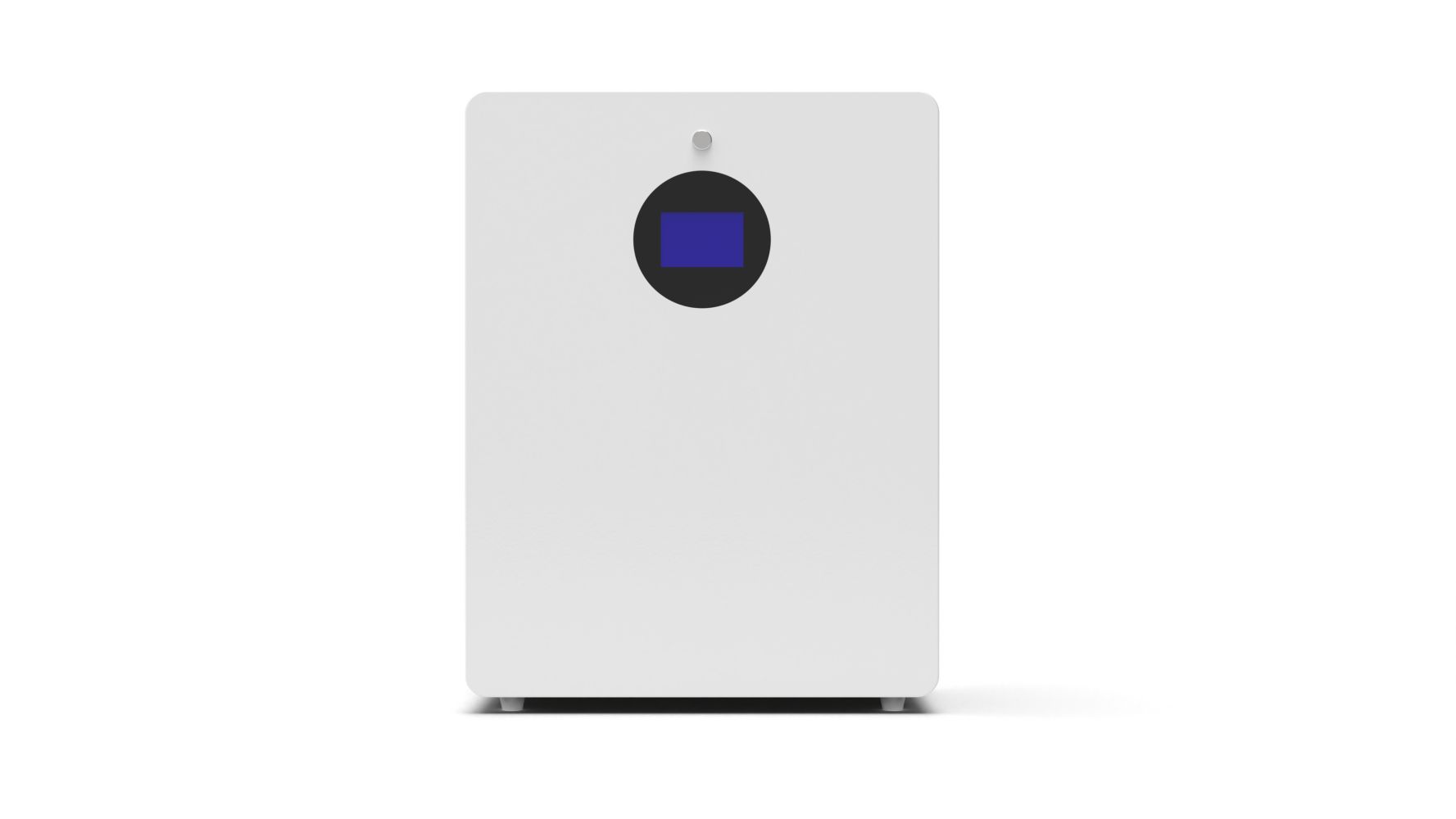

Best Sell Wall Mount Household LFP Battery
It is a perfect wall mounted solar energy lithium battery for residential home use. Built-in with High-Quality LFP Prismatic Cells.
It ensures a long cycle life of the battery system. The designed BMS is verified to be compatible with different brands of inverters, hybrid on grid & off grid or off grid.
|
Product Name |
51.2V100-WA1 |
51.2V200-WA2 |
|
Electrical Characteristics |
||
|
Nominal Voltage |
51.2V |
51.2V |
|
Nominal Capacity |
100AH |
200AH |
|
Energy |
5120WH |
10240WH |
|
Battery Chemistry |
Lithium Iron Phosphate (LFP) |
|
|
Cycle Life |
6000cycles@80%DOD,25℃/0.5C |
8000cycles@80%DOD,25℃/0.5C |
|
Operating Voltage |
43.2V-57.6V |
|
|
Communication Interfaces |
CAN/RS485/RS232 |
|
|
Scalable |
Up to 15 units |
|
|
Expansion function |
Single-pack level heat aerosolfre extinguishing device/Heating function/ bluetooth |
|
|
Charge & Discharge |
||
|
Recommended charging/discharging current |
100A |
|
|
Maximum continuous charge/discharge current |
100A |
|
|
Recommended charging/discharging current |
250A 10S |
|
|
Conversion efficiency |
99%,25℃/0.5C |
|
|
Environmental |
||
|
Environment |
Indoor |
|
|
Charging Temperature |
With heating function: -20~55℃；Without heating function: 0~55℃ |
|
|
Discharging Temperature |
-20 to 60℃ |
|
|
Storage Temperature |
Between 20℃ and 45℃ within three months; 25±3℃ for more than three months |
|
|
Storage humidity |
65+20% RH |
|
|
Altitude |
≤3,000 m |
|
|
Cooling Method |
Natural Convection |
|
|
IP Rating |
IP65 |
|
|
Mechanical |
||
|
Dimension (L*W*D) |
780*495*217mm |
780*495*217mm |
|
Weight |
55KG |
95KG |
|
Installation |
Wall-mounted |
|
|
Certification |
||
|
Certificate |
CB, IEC62619, UL1973, UL9540A, CE-EMC,UN38.3, MSDS |
|
