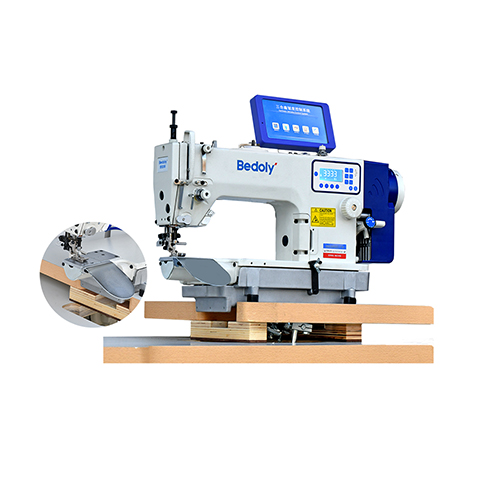

BDL6494C-7 Programmable cylinder bed machine for joining sleeve

Suitable for
Joining sleeve
(Suit / Tang suit / Tweed coat / Casual wear / Trench coat)

BDL6494C-7 Programmable cylinder bed machine for joining sleeve (minimum lubrication)

Suitable for

Joining sleeve

(Suit / Tang suit / Tweed coat / Casual wear / Trench coat)

Cylinder sewing

Product Advantage

The machine is of high cost performance;

No need to moe the sleeve by hand , the sleeve could be put on the clothes body directly and the computer will control the easing size and section; improving the production efficiency greatly. Using a serve motor to control the easing size and section length，the arc-shape of a sleeve can be divided into 15sections easing size maximally to meet the need of all kinds of joining sleve processes. Computer control the easing size of each section, no extra operation to be needed; There are 20 programs in storage, only need to be input one time and can be called in any time possibly. Lock stitch, cylinder length 78 cm, perimeter 195 mm, suitable for working in small space, improving production efficiency greatly.

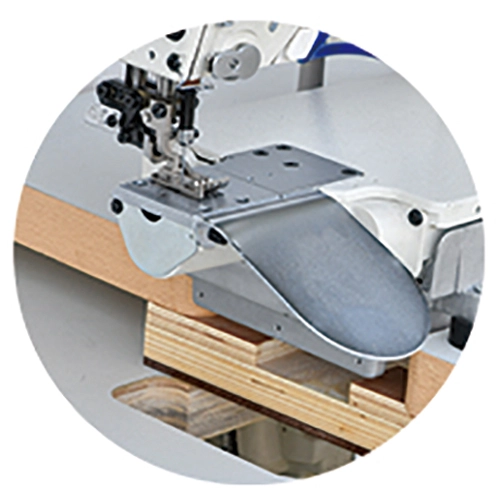

Partial enlargement

Technical parameter

Maximum sewing speed: 4000 rpm

Maximum pitch: 5mm

Maximum feeding amount: 8mm

Upper differential differential ratio: shrink 1:1.5 stretch 1:0.5

Presser foot lift: manual 5mm, knee 13mm

Needle used: DBX1(14#)
